HURRICANE HS-2

ONE OR TWO OPERATOR DOUBLE BUCK UNIT



One HS-2 – Double Buck Body/Sleever Press, One WCZ– Double Collar/Cuff Press






Production (1 Operator)

60 shirts per hour

Production (2 Operator)

100 shirts per hour

Steam Pressure Supply

100 - 125 psi

7 - 9 bar

Steam Consumption

4 1/2 bph

70 kg/hr

Air Pressure Supply

85 - 125 psi

6 - 9 bar

Air Consumption @ 60/hr

4.75 cfm

135 L/min

Air Consumption @ 100/hr

8.0 cfm

227 L/min

Electrical Supply (Controls)

115/1/60

240/1/50

Electrical Supply (Blower)

208-230/3/60

380-415/3/50

Electrical Consumption (3 phase)

17.7 amps @ 230

9.6 amps @ 400

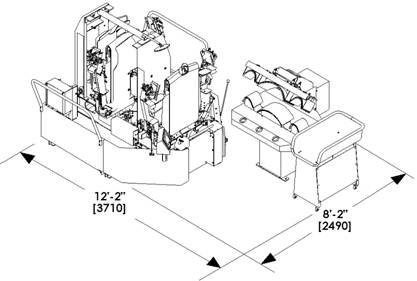

Floor Space

100 sq ft

9.3 sq m
