LIGHTNING LS1
ONE
OPERATOR SINGLE BUCK UNIT
LS1 - Single Buck
Body/Sleever Press with built In Collar/Cuff Press
(ALL IN ONE SHIRT
MACHINE)
|
Production
(1 Operator) |
50 - 60 shirts per hour |
|
|
Steam
Pressure Supply |
100
- 125 psi |
7
- 9 bar |
|
Steam
Consumption |
3-1/4
bhp |
52
kg/hr |
|
Air
Pressure Supply |
85
- 125 psi |
6
- 9 bar |
|
Air
Consumption @ 50/hr |
3.8
cfm |
108
L/min |
|
Electrical
Supply (Controls) |
115/1/60 |
240/1/50 |
|
Electrical
Supply (Blower) |
208-230/3/60 |
380-415/3/50 |
|
Electrical
Consumption (3 phase) |
17.7
amps @ 230 |
9.6
amps @ 400 |
|

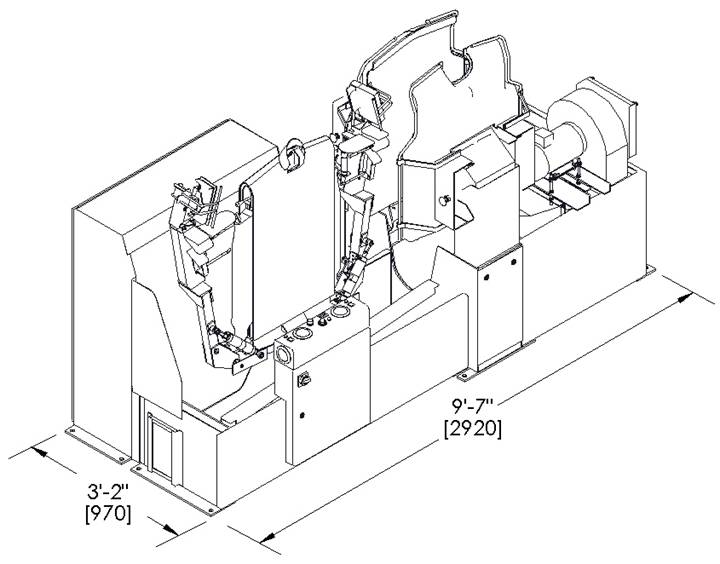

Floor
Space |
30
sq ft |
2.8
sq m |
